PFPSBVNM Ball Valve Valve - N/A

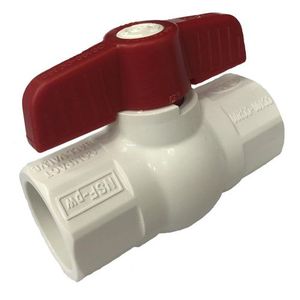

PROFLO PFPSBVNM Ball Valve

Item: PFPSBVNM
Finish: N/A
Quantity Available: Retrieving ...


Details and Dimensions

Additional Information • 3 in. pvc ball valve
Features • Reduced port valve opening
• Socket diameter confirms to ASTM D2467
• NSF 61 Annex G
• ANSI 61 Annex G
• Valve Length: 9.173 in.
• Valve Pressure Class: 150#
• Low flow loss
Valve Disc Material PVC
Valve Body Style 2 Piece
Valve Operator Lever Handle
End Connection 1 Solvent Weld
Maximum Temperature Maximum Temperature: 73 degrees (F)
End Connection End Connections: Solvent Weld
End Connection 2 Solvent Weld
Handle Length 8-41/50"
Handle Material ABS
Height 7-12/25"
UL Listed No
Valve Seat Material EPDM;PTFE
